Tekton Chains

The Chains configuration

Since Tekton Chains is a Tekton Component, on OpenShift, it is configured and managed by the {openshift_console_url}/k8s/all-namespaces/operators.coreos.com~v1alpha1~ClusterServiceVersion?cluster-service-version=pipelines[OpenShift Pipelines Operator^,window="console"].

Therefore, it is also configured via the operator:

In our terminal, take a look at the tektonconfig custom resource (CR), specifically the spec.chain section:

oc get tektonconfig -n openshift-operators -o yaml | less

HINT: Exit less with q or Q

The operator turns the global tektonconfig into a chains-config ConfigMap in the openshift-pipelines namespace, that the Chains Controller reads. Look at it with:

oc get configmap chains-config -n openshift-pipelines -o jsonpath='{.data}' | jq

{
  "artifacts.oci.format": "simplesigning",
  "artifacts.oci.storage": "oci",
  "artifacts.pipelinerun.format": "in-toto",
  "artifacts.pipelinerun.storage": "oci",
  "artifacts.taskrun.format": "in-toto",
  "artifacts.taskrun.storage": "oci",
  "transparency.enabled": "true",
  "transparency.url": "https://rekor-server-tssc-tas.apps.cluster-vtm4r.dynamic.redhatworkshops.io"
}

Don’t change or patch this ConfigMap directly, as the operator will reconcile it based on the global tektonconfig CR.

If you closely compare the chains-config configMap and the "chain" section in the tektonConfig you will also notice that the configMap contains all the info that Chains needs to run, but not the Chains configuration itself: generateSigningSecret: true is missing, for example, also the Chains "master switch": disabled: false

The current configuration

So, what do these values mean (we’ll look at the tektonconfig)

    chain:
      artifacts.oci.format: simplesigning
      artifacts.oci.storage: oci
      artifacts.pipelinerun.format: in-toto
      artifacts.pipelinerun.storage: oci
      artifacts.taskrun.format: in-toto
      artifacts.taskrun.storage: oci
      disabled: false
      generateSigningSecret: true
      options: {}
      performance:
        disable-ha: false
      transparency.enabled: "true"
      transparency.url: https://rekor-server-tssc-tas.apps.cluster-vtm4r.dynamic.redhatworkshops.io

Here’s a breakdown of each Tekton Chains configuration parameter:

Artifact Format & Storage:

artifacts.oci.format: simplesigning - Uses "classic" signing format for OCI (container) images; creates the cryptographic signatures for artifacts (images)
artifacts.oci.storage: oci - Stores OCI artifact signatures in the OCI registry itself (alongside the images)
artifacts.pipelinerun.format: in-toto - Creates attestations for PipelineRuns using the in-toto format (for more information about the in-toto format and attestations in general, see Provenance & Attestations)
artifacts.pipelinerun.storage: oci - Stores PipelineRun attestations in the OCI registry
artifacts.taskrun.format: in-toto - Creates attestations for TaskRuns using the in-toto format
artifacts.taskrun.storage: oci - Stores TaskRun attestations in the OCI registry

Core Settings:

disabled: false - Chains controller is active and will sign/attest TaskRuns and PipelineRuns
generateSigningSecret: true - Automatically creates signing keys for Chains (rather than providing your own) and stores it in the signing-secrets secret in the openshift-pipelines namespace
options: {} - Additional configuration options (currently empty)

Performance:

performance.disable-ha: false - High Availability is enabled; multiple Chains controller replicas can run for redundancy

Transparency Log:

transparency.enabled: "true" - Enables publishing signatures/attestations to the configured Rekor transparency log for public verification
transparency.url - The Rekor server endpoint where signatures are logged (part of Trusted Artifact Signer/Sigstore) to provide an immutable audit trail

Configuration Options

For reference and to give you some ideas of the options available (feel free to play with the configuration - it’s not a customer environment, after all) here’s a full list of configuration options and what they do

Click & Expand to see the full list of configuration options

Details

TaskRun Configuration

artifacts.taskrun.format

in-toto - Stores TaskRun payloads in the in-toto attestation format
slsa/v1 - Alias of in-toto for backwards compatibility
slsa/v2alpha3 - Corresponds to SLSA v1.0 spec, uses latest v1 Tekton Objects (recommended for new users wanting SLSA v1.0)
slsa/v2alpha4 - Corresponds to SLSA v1.0 spec, uses latest v1 Tekton Objects, reads type-hinted results from StepActions (recommended)
Default: in-toto

artifacts.taskrun.storage

tekton - Store signatures in TaskRun annotations
oci - Store signatures in OCI registries
gcs - Store signatures in Google Cloud Storage
docdb - Store signatures in document database (Firestore, DynamoDB, MongoDB)
grafeas - Store signatures in Grafeas (Container Analysis)
archivista - Store signatures in Archivista
Multiple backends can be specified with comma-separated list (e.g., "tekton,oci")
Empty string "" disables TaskRun artifact storage
Default: tekton

artifacts.taskrun.signer

x509 - Key-based signing using x509 certificates
kms - Signing using Key Management Service (AWS KMS, GCP KMS, Azure Key Vault, HashiCorp Vault)
none - Disable signing while still storing provenance
Default: x509

PipelineRun Configuration

artifacts.pipelinerun.format

in-toto - Stores PipelineRun payloads in the in-toto attestation format
slsa/v1 - Alias of in-toto for backwards compatibility
slsa/v2alpha3 - Corresponds to SLSA v1.0 spec, uses latest v1 Tekton Objects (recommended)
slsa/v2alpha4 - Corresponds to SLSA v1.0 spec, uses latest v1 Tekton Objects, reads type-hinted results from StepActions (recommended)
Default: in-toto

artifacts.pipelinerun.storage

Same options as TaskRun storage: tekton, oci, gcs, docdb, grafeas, archivista - Can use comma-separated list for multiple backends - Empty string disables PipelineRun artifact storage - Default: tekton

artifacts.pipelinerun.signer

Same options as TaskRun signer: x509, kms, none - Default: x509

artifacts.pipelinerun.enable-deep-inspection

"true" - Chains inspects both pipeline level and task level results (captures inputs/outputs from child TaskRuns)
"false" - Chains only checks pipeline level results
Default: "false"

OCI Configuration (for the OCI Artifacts, aka Images)

artifacts.oci.format

simplesigning - The only currently supported format for OCI payloads
Default: simplesigning

artifacts.oci.storage

tekton - Store in TaskRun/PipelineRun annotations
oci - Store in OCI registries alongside images
gcs - Store in Google Cloud Storage
docdb - Store in document database
grafeas - Store in Grafeas
Can use comma-separated list for multiple backends
Empty string disables OCI artifact storage
Default: oci

artifacts.oci.signer

x509 - Sign using x509 certificates
kms - Sign using Key Management Service
none - Skip signing OCI artifacts (but attestations are still generated and pushed if storage is configured)
Default: x509

Storage Configuration

storage.oci.repository

Specifies the OCI repository to store signatures and attestations
If undefined and OCI storage is enabled, attestations are stored alongside the OCI artifact itself
Example: gcr.io/my-project/my-repo

storage.gcs.bucket

The Google Cloud Storage bucket name for storing artifacts
Example: my-tekton-chains-bucket

storage.docdb.url

The URI reference to a docstore collection
Examples:
- Firestore: firestore://projects/[PROJECT]/databases/(default)/documents/[COLLECTION]?name_field=name
- DynamoDB: dynamodb://[TABLE_NAME]?partition_key=[KEY]
- MongoDB: mongo://[DATABASE]/[COLLECTION]?id_field=_id

MongoDB Connection Options (for docdb):

storage.docdb.mongo-server-url - Direct MongoDB connection URI (not recommended, stores in ConfigMap)
storage.docdb.mongo-server-url-dir - Path to directory containing file named MONGO_SERVER_URL with connection string (recommended, uses Secret)
storage.docdb.mongo-server-url-path - Direct path to file containing MongoDB connection URI (recommended, uses Secret)
These options override each other in order: path > dir > url > MONGO_SERVER_URL environment variable

storage.grafeas.projectid

The GCP project ID where Grafeas server is located
Required for Grafeas storage backend

storage.grafeas.noteid

Prefix for Grafeas note names (no spaces allowed)
Chains appends -simplesigning for ATTESTATION notes and -intoto for BUILD notes
If not configured, defaults to tekton-<NAMESPACE>

storage.grafeas.notehint

Human-readable name for the Grafeas ATTESTATION note
Default: "This attestation note was generated by Tekton Chains"

storage.archivista.url

URL of the Archivista server for storing attestations
Example: https://archivista.testifysec.io

In-toto/SLSA Configuration

builder.id

The builder ID to set for in-toto attestations
Default: https://tekton.dev/chains/v2

builddefinition.buildtype

Only valid for slsa/v2alpha3 and slsa/v2alpha4 formats:

https://tekton.dev/chains/v2/slsa - Strictly conforms to SLSA v1.0 spec
https://tekton.dev/chains/v2/slsa-tekton - Conforms to SLSA v1.0 but adds Tekton-specific information (PipelineRun/TaskRun labels, annotations as internalParameters, captures each pipeline task under resolvedDependencies)
Default: https://tekton.dev/chains/v2/slsa

Transparency Log (Rekor) Configuration

transparency.enabled

true - Automatically upload all signatures and attestations to transparency log
false - Disable transparency log uploads
manual - Only upload TaskRuns/PipelineRuns with annotation chains.tekton.dev/transparency-upload: "true"
Default: false

transparency.url

The URL of the transparency log server (Rekor)
Default: https://rekor.sigstore.dev
Example (custom): https://rekor-server.mycompany.com

Keyless Signing (Fulcio) Configuration

signers.x509.fulcio.enabled

true - Enable keyless signing with Fulcio (obtain short-lived certificates via OIDC)
false - Use traditional key-based signing
Default: false

signers.x509.fulcio.address

The Fulcio server URL to request certificates from
Default: https://fulcio.sigstore.dev
Example (custom): http://fulcio.fulcio-system.svc (for internal Kubernetes service)

signers.x509.fulcio.issuer

The expected OIDC issuer URL
Default: https://oauth2.sigstore.dev/auth
Example (Keycloak): https://keycloak.example.com/auth/realms/myrealm

signers.x509.fulcio.provider

google - Use Google OIDC provider
spiffe - Use SPIFFE for workload identity
github - Use GitHub Actions OIDC tokens
filesystem - Read token from file specified in signers.x509.identity.token.file
If unset, each provider will be attempted automatically
Default: Unset (tries all providers)

signers.x509.identity.token.file

Path to file containing OIDC ID token
Used when signers.x509.fulcio.provider is set to filesystem
Example: /var/run/secrets/tokens/oidc-token

signers.x509.tuf.mirror.url

TUF server URL for distributing Sigstore’s root of trust
The URL $TUF_URL/root.json must be accessible
Default: https://sigstore-tuf-root.storage.googleapis.com

KMS Configuration

signers.kms.kmsref

The URI reference to a KMS service. Supported schemes:

gcpkms://projects/[PROJECT]/locations/[LOCATION]/keyRings/[KEYRING]/cryptoKeys/[KEY]/versions/[VERSION] - Google Cloud KMS
awskms://[ENDPOINT]/[ID/ALIAS/ARN] - AWS KMS
azurekms://[VAULT_NAME][VAULT_URI]/[KEY] - Azure Key Vault
hashivault://[KEY] - HashiCorp Vault

KMS Authentication:

signers.kms.auth.address - URI of KMS server (e.g., VAULT_ADDR for HashiCorp Vault)
signers.kms.auth.token - Auth token for KMS server (e.g., VAULT_TOKEN)
signers.kms.auth.token-path - Path to file containing KMS auth token (recommended over direct token)
signers.kms.auth.oidc.path - Path used for OIDC authentication (e.g., jwt for Vault)
signers.kms.auth.oidc.role - Role used for OIDC authentication with KMS
signers.kms.auth.spire.sock - URI of SPIRE socket for KMS token (e.g., unix:///tmp/spire-agent/public/api.sock)
signers.kms.auth.spire.audience - Audience for requesting SVID from SPIRE

OpenShift-specific Configuration

generateSigningSecret (TektonChain CR parameter)

true - Operator generates a cosign key pair and stores in signing-secrets secret
false - Operator does not generate keys (use when providing your own keys or using keyless signing)
Default: false
Note: When set to true, creates cosign.key (private key), cosign.password (decryption password), and cosign.pub (public key)

disabled (TektonChain CR parameter)

true - Disable Chains feature completely
false - Enable Chains
Default: false

performance.disable-ha Your config shows this parameter set to false. This controls whether high-availability mode is disabled for the Chains controller.

Chains in action

In this environment, we have a running Chains configuration that is used in all the exercises leveraging Red Hat Developer Hub as our Developer Portal and "Frontend" to the CI and CD (through the Tekton and ArgoCD plugins).

So, let’s use what we have and generate an image with associated signature and attestation, so we can see what the above configuration generated.

First, login to our {rhdh_url}[Red Hat Developer Hub instance^,window="rhdh"] as {rhdh_user} with password {rhdh_user_password}

Should you automatically be logged in as admin, please log out and log back in again as {rhdh_user} with password {rhdh_user_password}

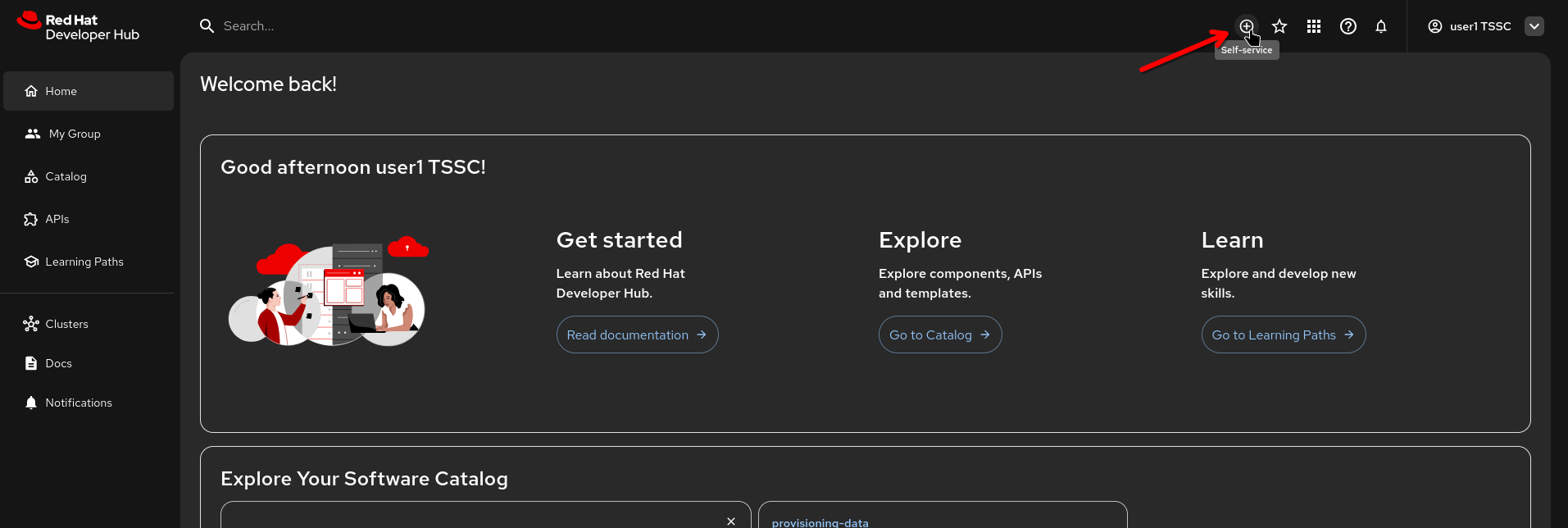

Click on the "Self-Service" button (the (+) icon) to get to the {rhdh_url}/create[Self-Service Page^,window="rhdh"]

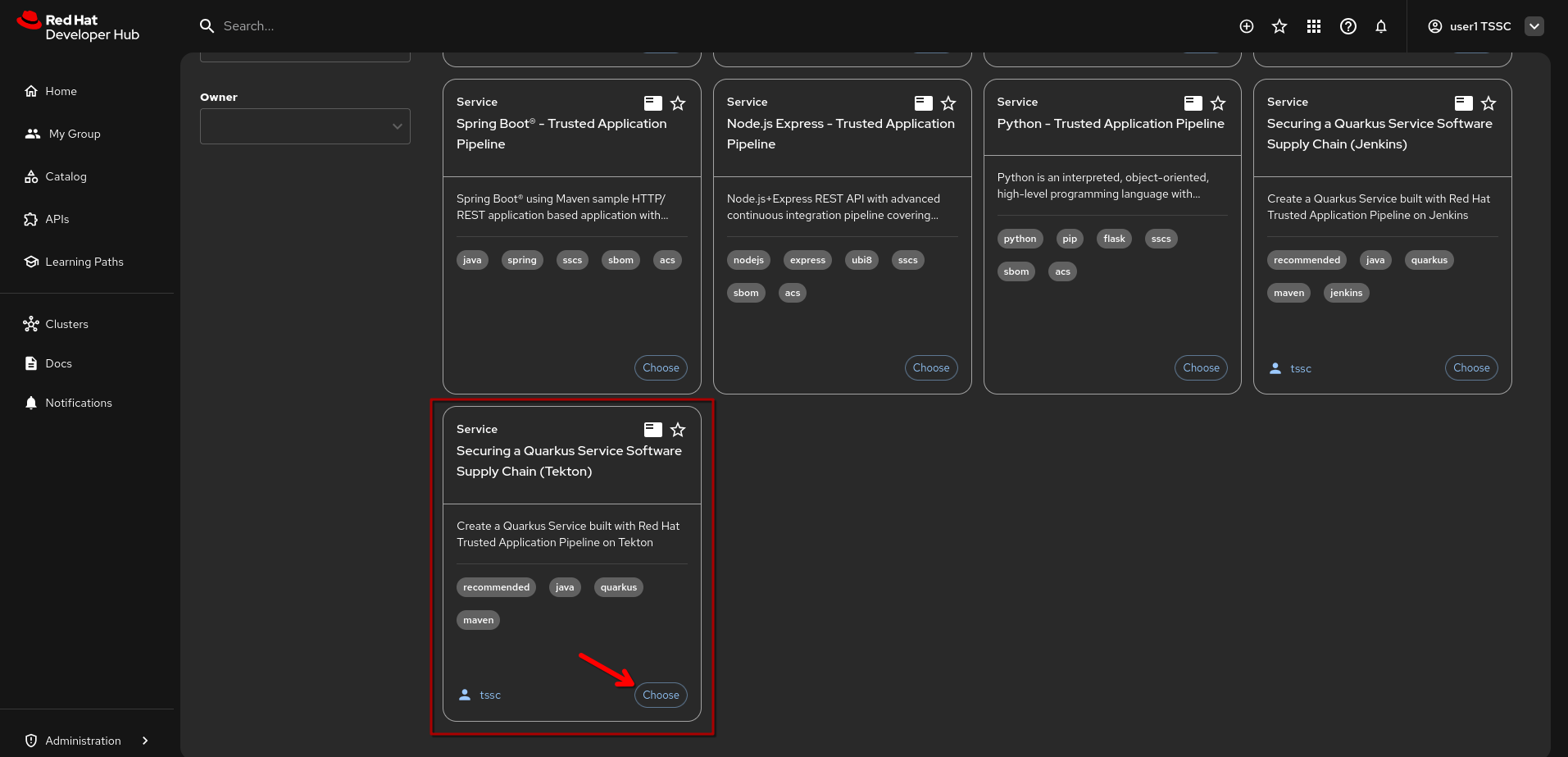

Scroll down to the template named "Securing a Quarkus Service Software Supply Chain (Tekton)" and click on {rhdh_url}/create/templates/default/quarkus-stssc-template["Choose"^,window="rhdh"]

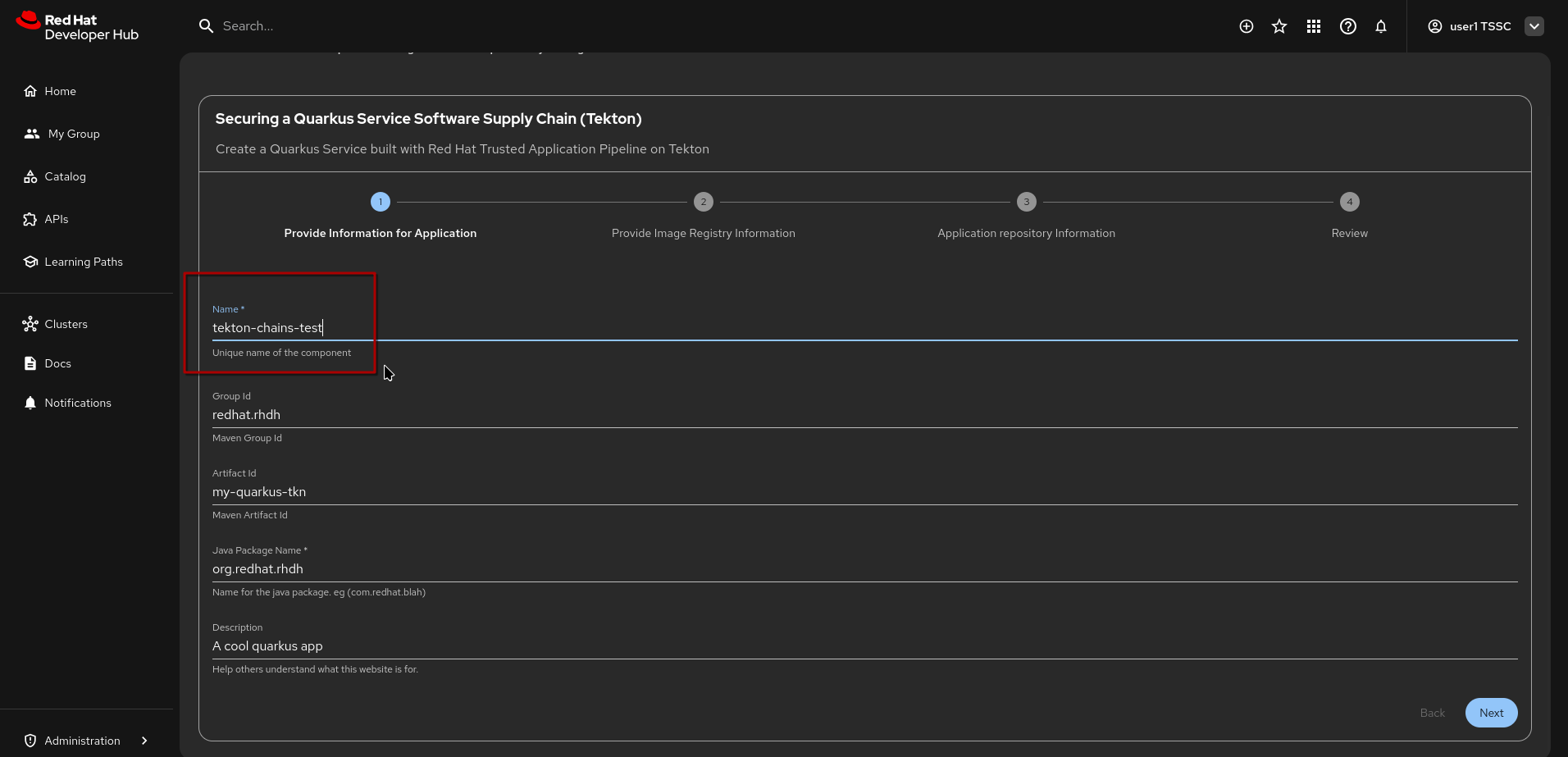

Change the name to tekton-chains-test and leave the other fields at their default values
Click "Next"

All the following scripts and examples assume you gave it the name "tekton-chains-test" - if you give it any other name, you will have to adapt accordingly.

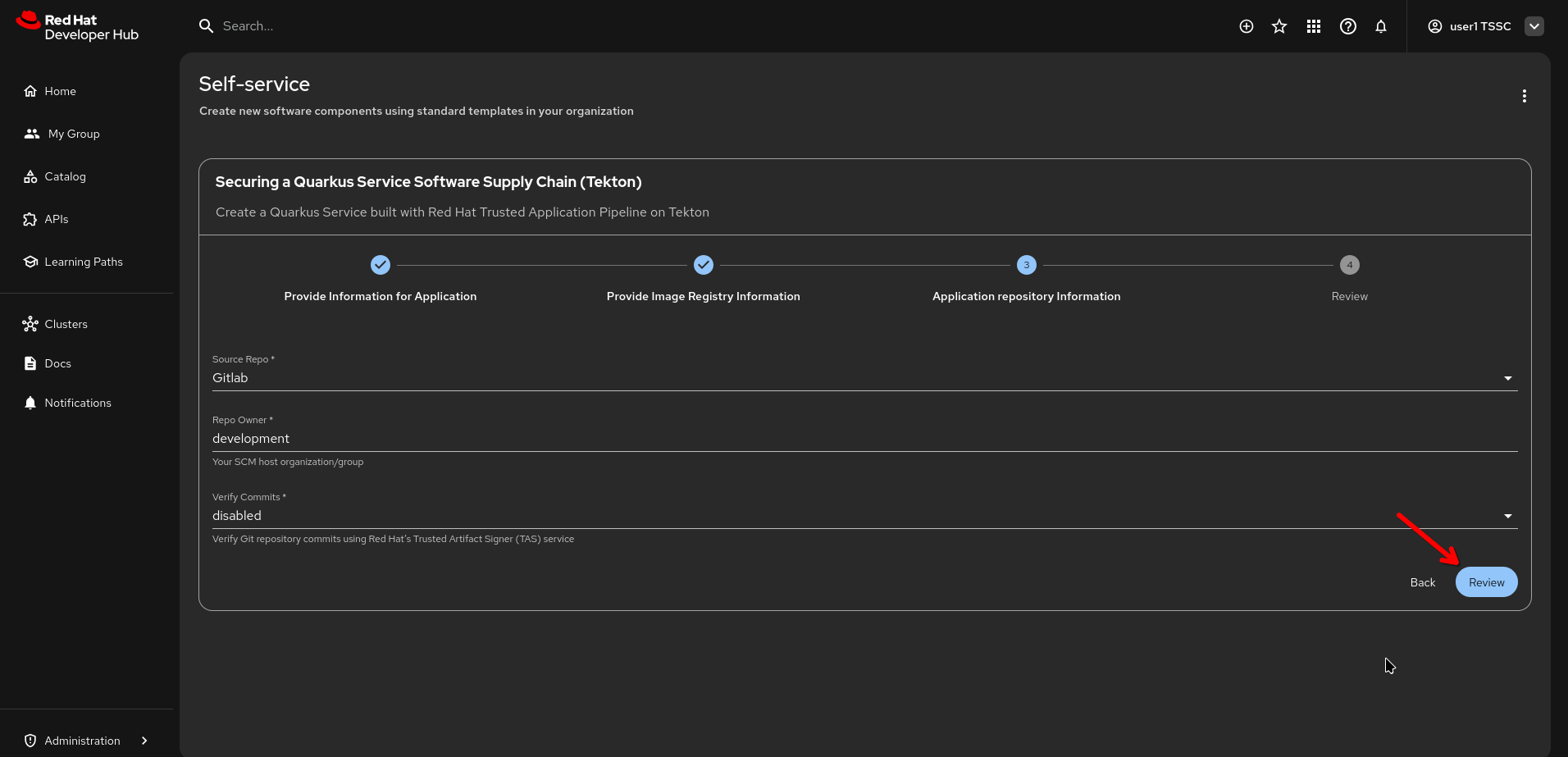

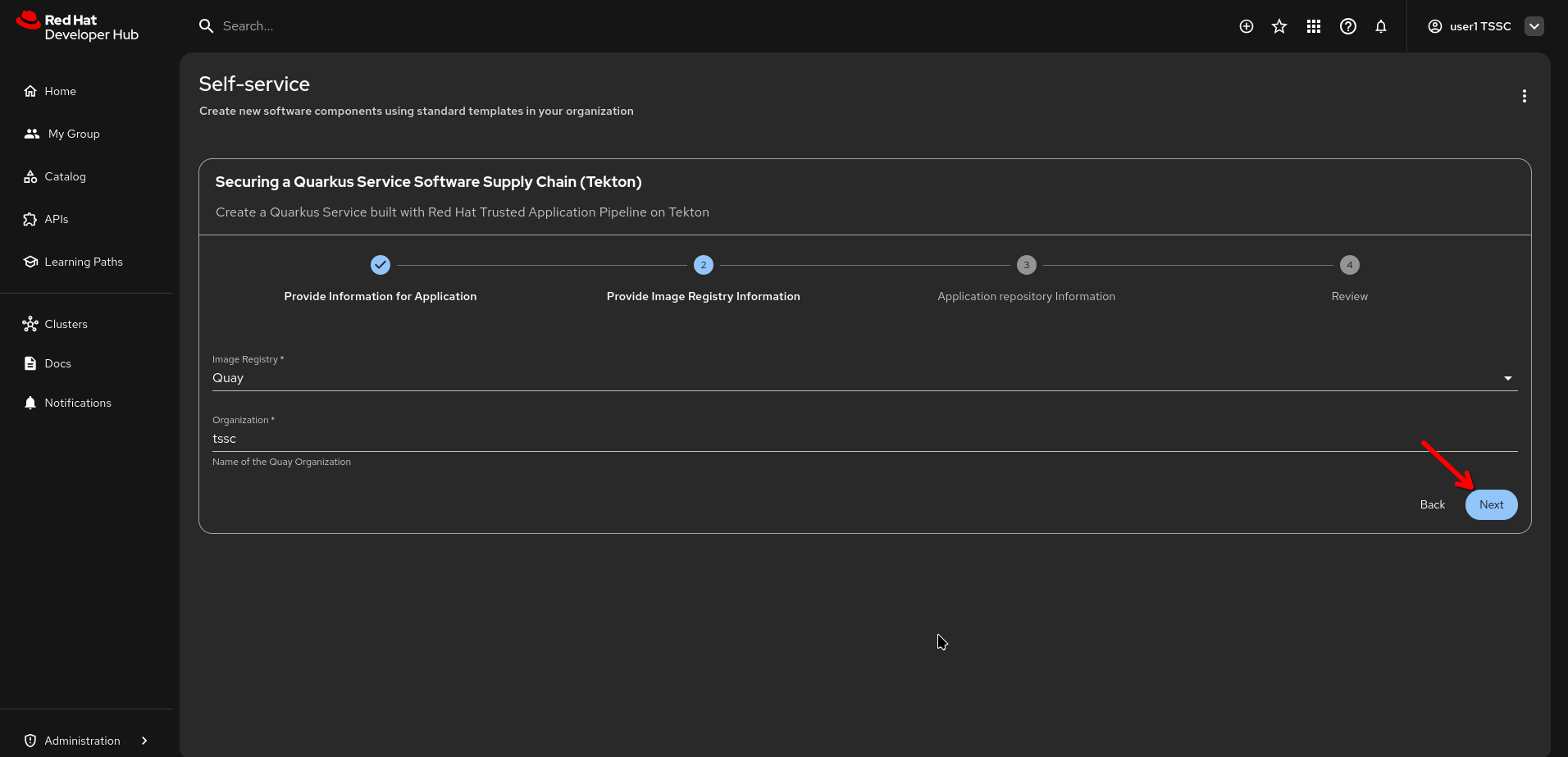

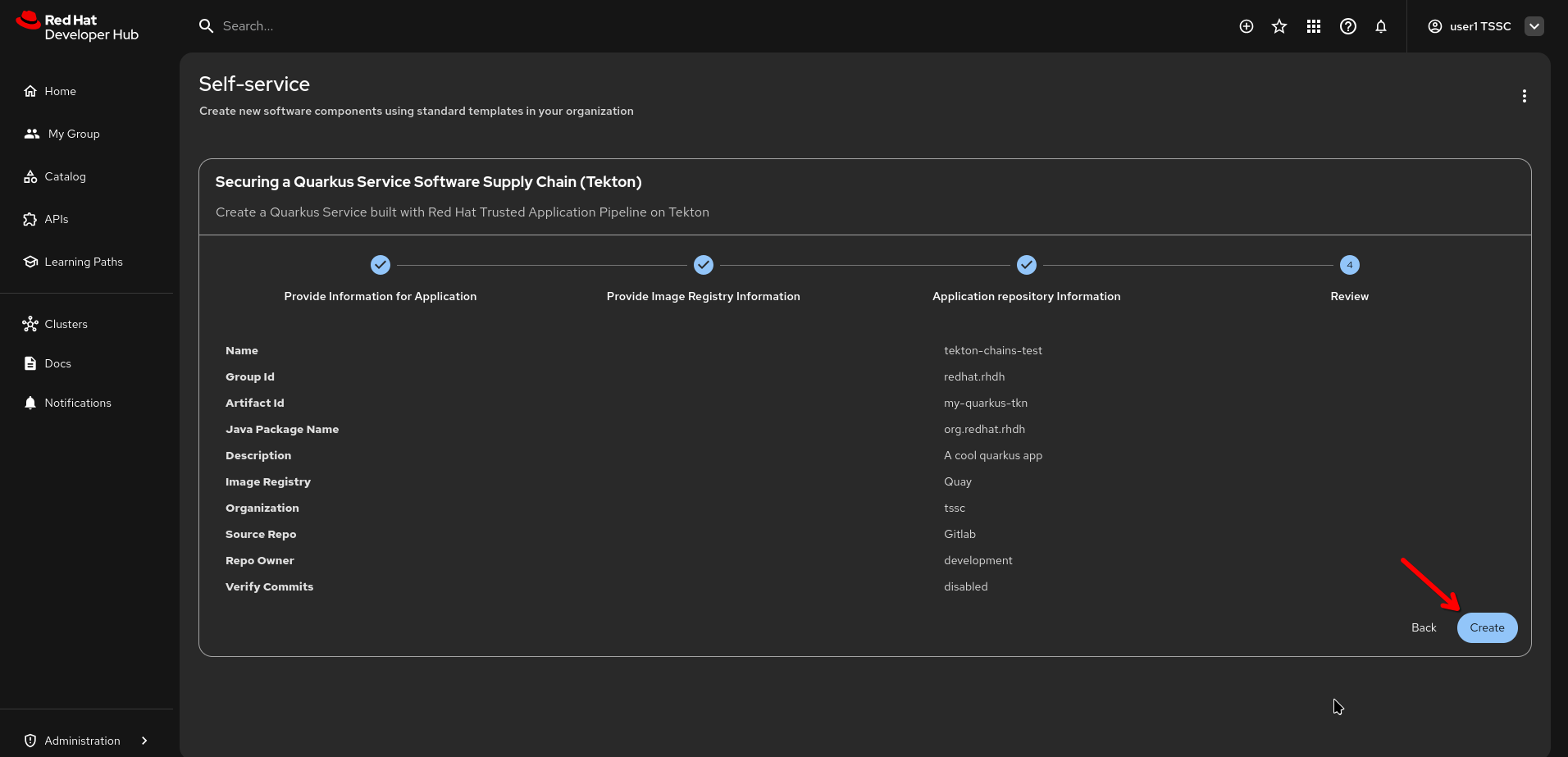

Leave all other fields at their default values and click "Next" and then "Review", followed by "Create".
(Click on the images for full size)

The template will instantiate all the necessary resources, from the git repo to the ArgoCD artifacts - and for our context here, The Pipeline, which will run automatically for an initial build after a few moments.

Click on {rhdh_url}/catalog/default/component/tekton-chains-test["Open Component in Catalog"^,window="rhdh"]

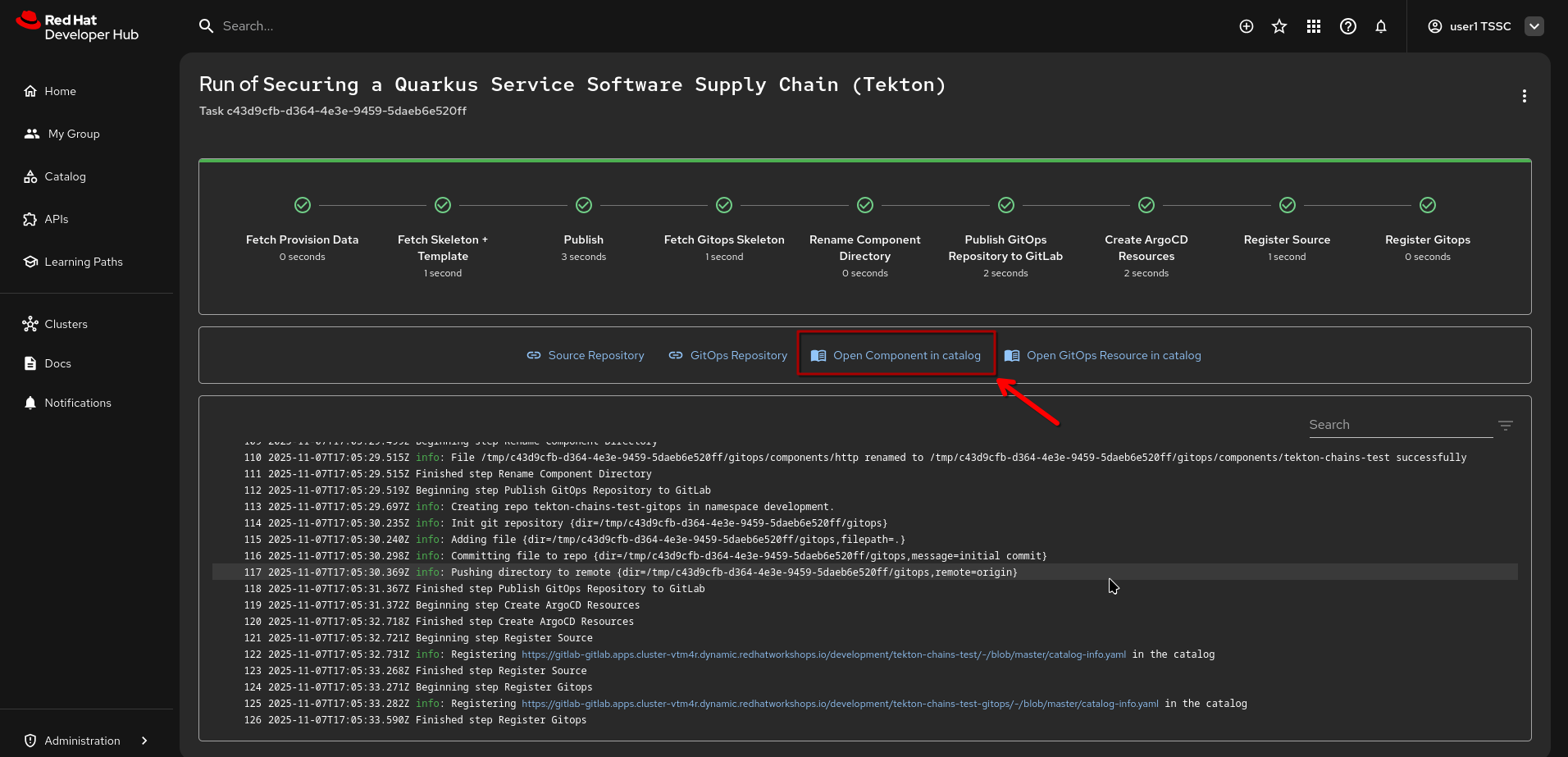

rhdh tekton chains test run open component

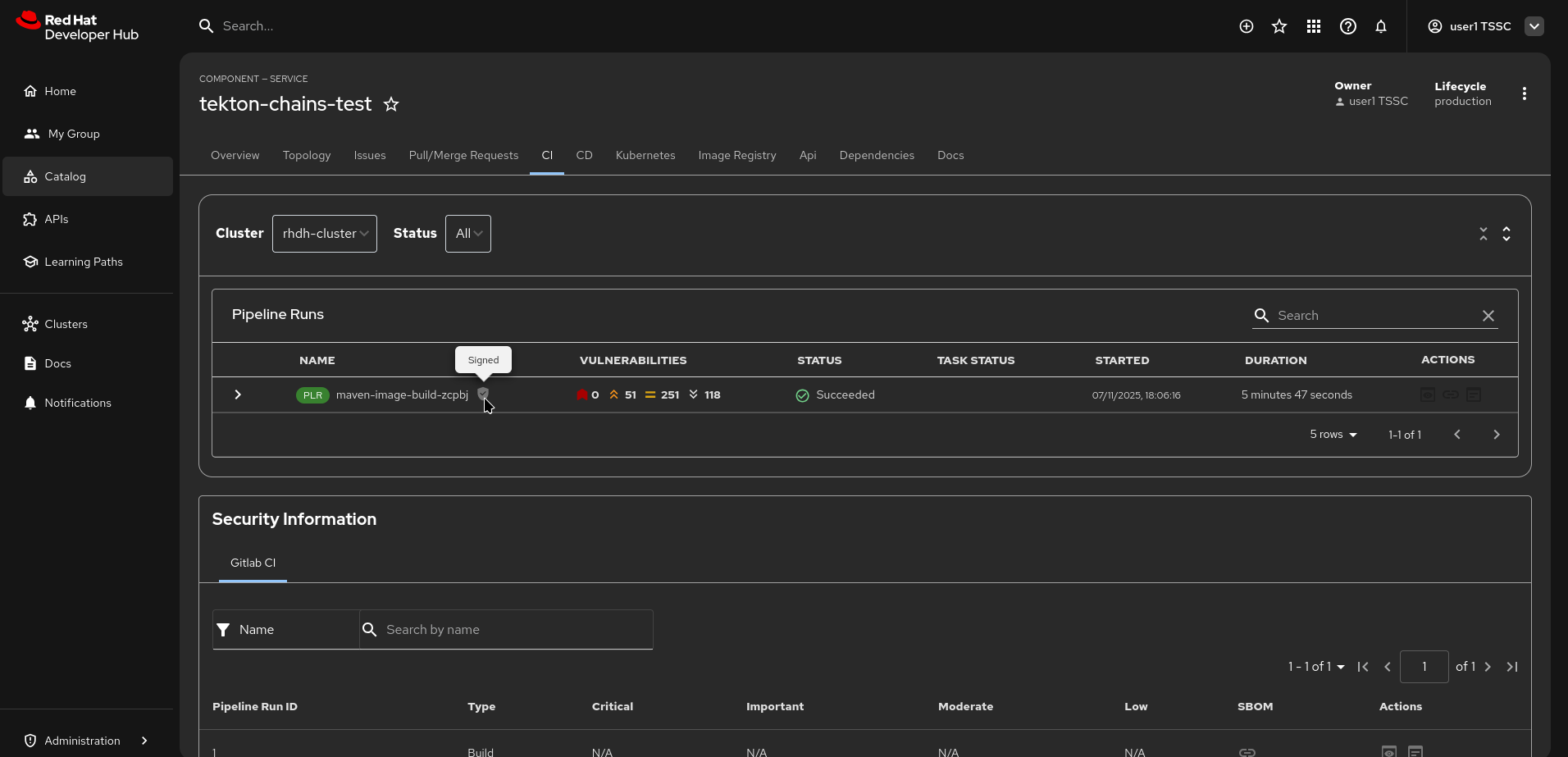

When you click the {rhdh_url}/catalog/default/component/tekton-chains-test/ci["CI" tab^, window="rhdh"] on the Component Page, you’ll see that a pipeline has just started (give it a moment if it hasn’t already).

After the pipelinerun has finished, you can see that the pipelinerun itself has been signed and attested (the little "shield" showing "signed" when hovering over it.)

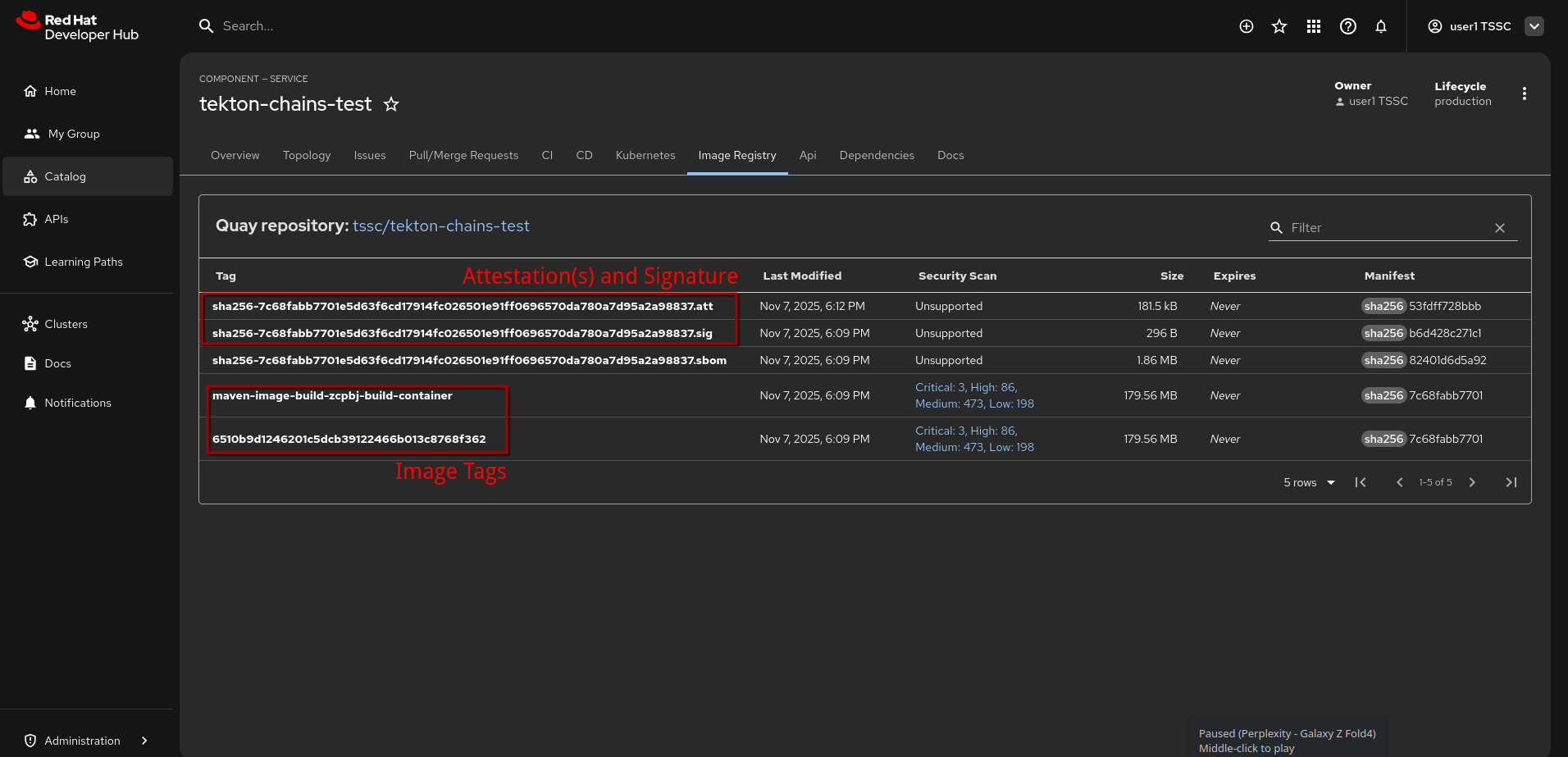

When we go to the {rhdh_url}/catalog/default/component/tekton-chains-test/image-registry[Image Registry Tab^,window="rhdh"], we can see that the image has two tags, but also three associated elements:

an SBOM (created by a pipeline task, using syft)
a signature (*.sig)
an attestation (*.att)

Both of which haven’t been created by an explicit sign and attest pipeline task, but by Tekton Chains.

rhdh tekton chains test homepage image registry

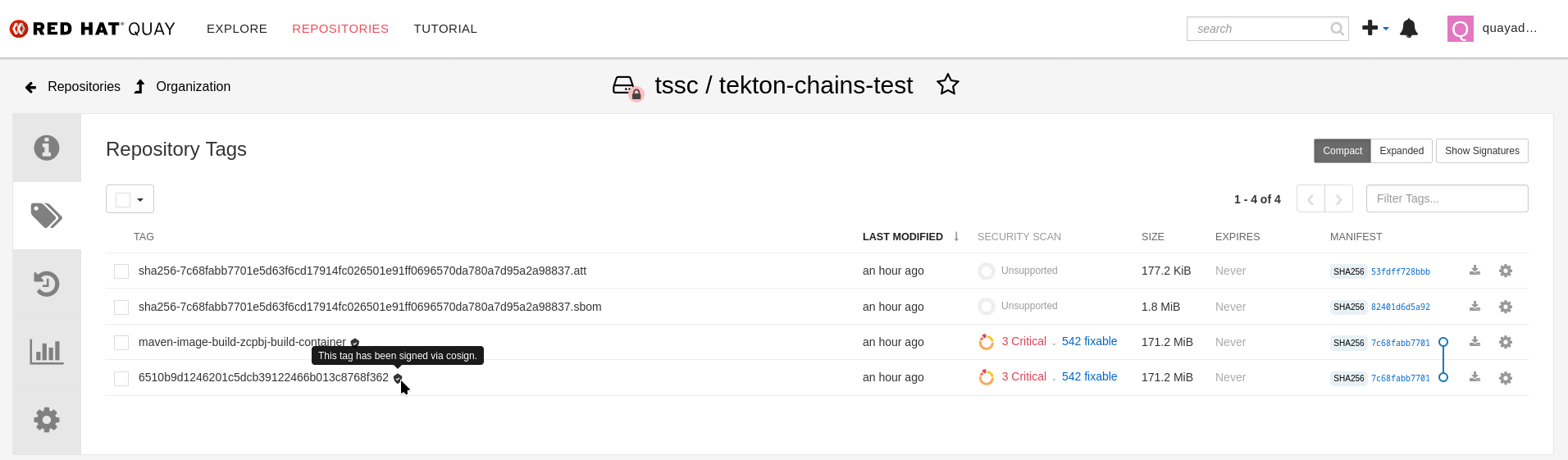

If we open that in {quay_url}/repository/tssc/tekton-chains-test?tab=tags[Quay directly^, window="quay"] we can see that Quay also recognises the signature (which the Quay Plugin for Red Hat Developer Hub doesn’t show in its current version):

To login to Quay, use {quay_admin_user} and {quay_admin_password}

The Chains Attestations

To take a closer look at the attestations and signature, we need to download and inspect them. As in earlier exercises, we will be using cosign for this.

Therefore, please open the Podman Terminal again.

If you’re asked to login again - choose any user you might have saved in your browser (such as {rhdh_user} with {rhdh_user_password} or {openshift_admin_user} with {openshift_admin_password})

To get our helper scripts, we need to clone the helpers repository again - and we’ll start with obtaining the full image reference on Quay and store it in the $CHAINS_IMAGE variable

git clone https://github.com/redhat-tssc-tmm/l3-enablement-helpers.git
cd l3-enablement-helpers/tas-tssc
source ./get-chains-image-sha.sh
echo ""
echo $CHAINS_IMAGE

Verification

We will again (as in other modules) use cosign verify but we need the public key, since our current Chains configuration uses a public/private key pair. Cosign then also verifies against the Rekor instance (which you can see if you type help since we have all that in environment variables).

Unless you use the --insecure-ignore-tlog, cosign will always verify the Rekor inclusion.

cosign verify --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq

In our Chains configuration, we have generateSigningSecret: true that triggers the Pipelines Operator to create a secret signing-secrets, which contains the cosign.pub key, which cosign automatically recognises.
Therefore, we can reference it via the k8s:// prefix.

To reference a key, we can use

File path: --key cosign.pub
Environment variable: --key env://VARIABLE_NAME
Kubernetes secret: --key k8s://namespace/secret-name
KMS: --key gcpkms://… or --key awskms://…

So, we can tell that it is a valid signature (that also has its inclusion proof in Rekor)

cosign verify --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq

Verification for quay-vtm4r.apps.cluster-vtm4r.dynamic.redhatworkshops.io/tssc/tekton-chains-test@sha256:7c68fabb7701e5d63f6cd17914fc026501e91ff0696570da780a7d95a2a98837 --
The following checks were performed on each of these signatures:
  - The cosign claims were validated
  - Existence of the claims in the transparency log was verified offline
  - The signatures were verified against the specified public key
[
  {
    "critical": {
      "identity": {
        "docker-reference": "quay-vtm4r.apps.cluster-vtm4r.dynamic.redhatworkshops.io/tssc/tekton-chains-test"
      },
      "image": {
        "docker-manifest-digest": "sha256:7c68fabb7701e5d63f6cd17914fc026501e91ff0696570da780a7d95a2a98837"
      },
      "type": "cosign container image signature"
    },
    "optional": null
  }
]

Similarly, we can validate the attestation’s integrity and signature, if we know its type - but trying doesn’t hurt, so cosign will give us an error if it’s default predicate type (custom) doesn’t match what we have in the attestations:

cosign verify-attestation --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq

cosign verify-attestation --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq
Error: none of the attestations matched the predicate type: custom, found: https://slsa.dev/provenance/v0.2,https://slsa.dev/provenance/v0.2
error during command execution: none of the attestations matched the predicate type: custom, found: https://slsa.dev/provenance/v0.2,https://slsa.dev/provenance/v0.2

So, it tells us what predicate types we have and we can then check

cosign verify-attestation --type https://slsa.dev/provenance/v0.2 --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq '.payload = "<payload>"'

We added the jq replacing the payload with a fixed string. If you try without, you will see that the payload contains a very long base64-encoded string - which is the actual attestation.
We’ll look at that in more detail later - for now, we have successfully verified the attestations:

cosign verify-attestation --type https://slsa.dev/provenance/v0.2 --key k8s://openshift-pipelines/signing-secrets $CHAINS_IMAGE | jq '.payload = "<payload>"'

Verification for quay-vtm4r.apps.cluster-vtm4r.dynamic.redhatworkshops.io/tssc/tekton-chains-test@sha256:7c68fabb7701e5d63f6cd17914fc026501e91ff0696570da780a7d95a2a98837 --
The following checks were performed on each of these signatures:
  - The cosign claims were validated
  - Existence of the claims in the transparency log was verified offline
  - The signatures were verified against the specified public key
{
  "payloadType": "application/vnd.in-toto+json",
  "payload": "<payload>",
  "signatures": [
    {
      "keyid": "SHA256:gElT0CKh7ref5P9CLalcPOSJB2ojX/28MCZFEhUrDSU",
      "sig": "MEUCIFAEpX6AElGd+AjsJRwRPKYfRj/LuCqLix0011BWm0rQAiEAp2zYjpkMFTLf54PTMX/RkD5OKpYLGnXGLSd0rtzgnG8="
    }
  ]
}
{
  "payloadType": "application/vnd.in-toto+json",
  "payload": "<payload>",
  "signatures": [
    {
      "keyid": "SHA256:gElT0CKh7ref5P9CLalcPOSJB2ojX/28MCZFEhUrDSU",
      "sig": "MEUCIH/Fr8cDTSrsitgfVS/OHGBv/5XhvB8wjrk1mIxZfpsrAiEA79EFeVM37iyp3iCJk2QSAPMsnCuH5m43qCtEYq5+2eU="
    }
  ]
}

Download & Inspect

After successfully verifying the attestation, we can download and inspect it:

cosign download attestation --predicate-type https://slsa.dev/provenance/v0.2 $CHAINS_IMAGE | jq '.payload = "<payload>"'

As you might have noticed, the download attestation subcommand doesn’t take a key, so it doesn’t verify the signature or its integrity - however, the output is in the same format as cosign verify-attestation (above).

cosign download attestation --predicate-type https://slsa.dev/provenance/v0.2 $CHAINS_IMAGE | jq '.payload = "<payload>"'
{
  "payloadType": "application/vnd.in-toto+json",
  "payload": "<payload>",
  "signatures": [
    {
      "keyid": "SHA256:gElT0CKh7ref5P9CLalcPOSJB2ojX/28MCZFEhUrDSU",
      "sig": "MEUCIFAEpX6AElGd+AjsJRwRPKYfRj/LuCqLix0011BWm0rQAiEAp2zYjpkMFTLf54PTMX/RkD5OKpYLGnXGLSd0rtzgnG8="
    }
  ]
}
{
  "payloadType": "application/vnd.in-toto+json",
  "payload": "<payload>",
  "signatures": [
    {
      "keyid": "SHA256:gElT0CKh7ref5P9CLalcPOSJB2ojX/28MCZFEhUrDSU",
      "sig": "MEUCIH/Fr8cDTSrsitgfVS/OHGBv/5XhvB8wjrk1mIxZfpsrAiEA79EFeVM37iyp3iCJk2QSAPMsnCuH5m43qCtEYq5+2eU="
    }
  ]
}

So, we know the payload has the OCI-recognised MIME-type application/vnd.in-toto+json and its signature.

Taking a look at the actual attestation (the payload) requires decoding it - we’ll again use jq for that:

cosign download attestation --predicate-type https://slsa.dev/provenance/v0.2 $CHAINS_IMAGE |  jq -r '.payload' | base64 -d | jq . | less

HINT: Exit less with q or Q

As you can see, these two attestations are quite verbose. If you’d like to study them in more detail in your IDE / JSON Tooling of choice, you can download it, since the Terminal is just another pod on OpenShift.

In the Terminal, run:

cosign download attestation --predicate-type https://slsa.dev/provenance/v0.2 $CHAINS_IMAGE |  jq -r '.payload' | base64 -d | jq . > /workspace/chains-attestations.json

On your local machine, log in to OpenShift using the admin account token (Click "request another token" if you follow the link).

Then, find the terminal’s pod name:

oc get pods -n ttyd

NAME                                   READY   STATUS    RESTARTS   AGE
ttyd-admin-terminal-6bf48d8b95-zz8tk   2/2     Running   0          31h

(yours will be different)

With the pod name from your environment, copy the file to your machine to inspect it

oc cp <use-your-pod-name-here>:/workspace/chains-attestations.json chains-attestations.json -c ttyd -n ttyd

When you look closer, you can see that we have two in-toto attestations of type https://slsa.dev/provenance/v0.2

one with "buildType": "tekton.dev/v1beta1/TaskRun"
one with "buildType": "tekton.dev/v1beta1/PipelineRun"

Both have the builder.id: "https://tekton.dev/chains/v2"

Both also contain all the environment and parameters data under invocation as well as the used materials (task images and git source for the pipelinerun) and build timestamps under metadata.

So, we have a full description of the build environment and the inputs that were used to create the artifact (which is the "subject" in the in-toto statement "envelope")

(click to enlarge)

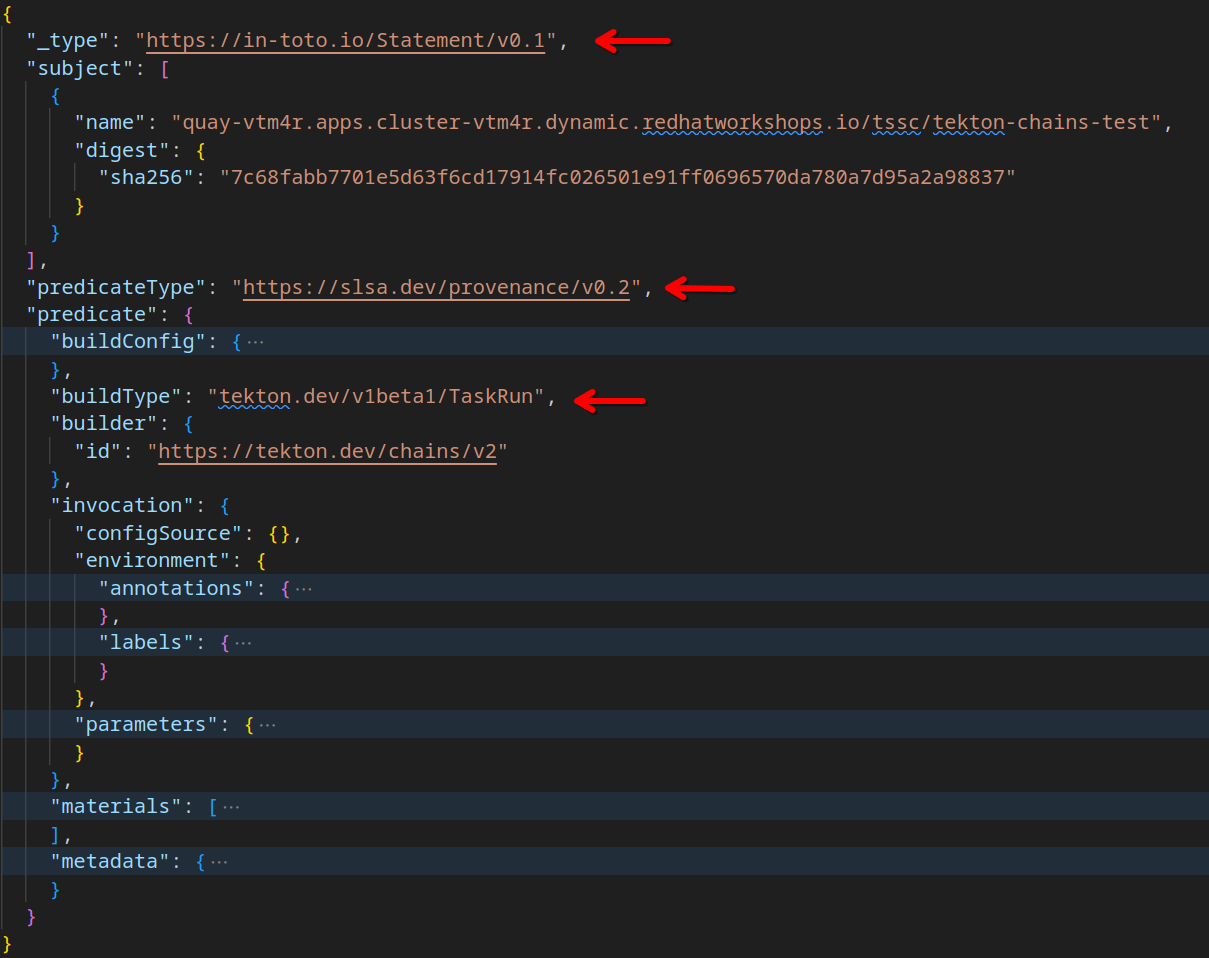

TaskRun:

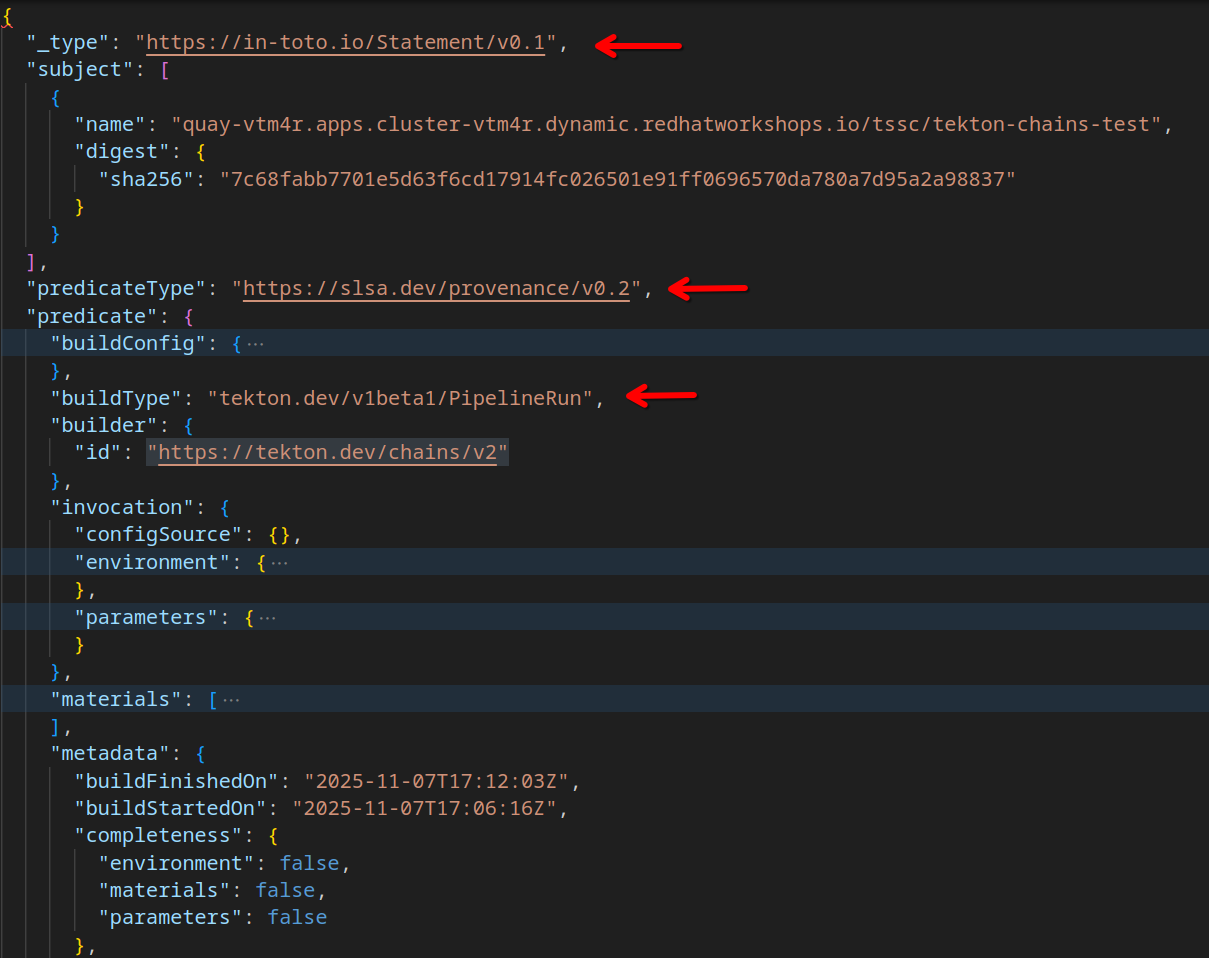

PipelineRun:

This is a standardized format (the slsa.dev/provenance/v0.2 format) that Enterprise Contract / Conforma policies and rules can interpret to validate the content.

Summary

In this chapter, you learned how to configure Tekton Chains and how to use it to sign and attest images and pipelines.

You also learned how to verify the attestations and signatures and how to download and inspect them.

In the next chapter, you will learn how to use Enterprise Contract / Conforma to validate the attestations and signatures (and ultimately how RHADS and RHACS combined can enforce security policies for your images and pipelines through their respective admission controllers). On to the next chapter!
