The correlation challenge

Vulnerability Data (CVE)

The primary information source that tells us if a package (as part of an SBOM) is vulnerable is the CVE (Common Vulnerabilities and Exposures).

TPA imports this data from two sources

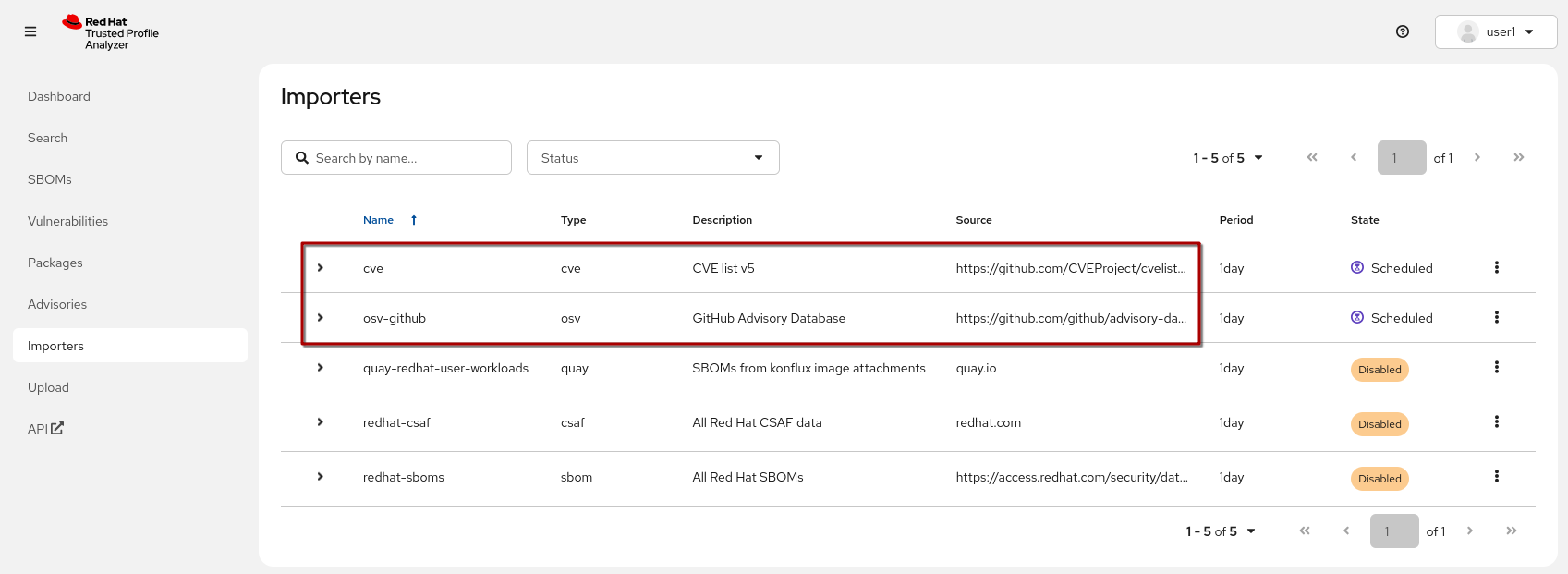

tpa importers

1) The CVE Program database

Red Hat has been appointed CNA, CNA-LR and root roles in the CVE program:

  • CVE Numbering Authority (CNA): An authorized entity with specific scope and responsibility to regularly assign CVE IDs and publish corresponding CVE Records.

  • CVE Numbering Authority of Last Resort (CNA-LR): A CNA authorized by a Root to assign CVE IDs and to publish corresponding CVE Records within that Root’s scope for vulnerabilities not covered by the Scope of another CNA.

  • Root: An organization authorized within the CVE Program that is responsible, within a specific Scope, for the recruitment, training, and governance of one or more entities that are a CNA, CNA-LR, or another Root.

2) The GitHub Advisory Database

Aggregates CVEs plus security advisories from

  • Security advisories reported on GitHub

  • The National Vulnerability Database

  • The npm Security Advisories Database

  • The FriendsOfPHP Database

  • The Go Vulnerability Database

  • The Python Packaging Advisory Database

  • The Ruby Advisory Database

  • The RustSec Advisory Database

Identification

There are two attributes by which a package and its version can be matched to CVE information: ("log4j-core version 2.13.1 is affected"):

  • purl (package URL)

  • CPE (Common Platform Enumeration)

Both sources above support these identifiers for CVEs.

Identifiers in SBOMs:

Both major SBOM formats support multiple identifier types:

CycloneDX:

  • Supports three fields for vulnerability identification: CPE, PURL, and SWID

  • CPE for operating systems/applications/hardware, SWID for installed software, and PURL for software package metadata

SPDX:

  • SPDX 2.2+ supports PURL as an external reference, and SPDX 3.0 promotes PURL more prominently

  • Also supports CPE via ExternalRef fields

  • Includes document-specific internal identifiers (SPDXID) for tracking relationships

What’s missing?

With

  • SBOMs listing packages and versions

  • CVE data listing affected packages

and both (SBOMs and CVE data) having enough data in common to successfully match - there isn’t anything missing, is there?

What is missing is Context information, especially if related to software artifacts ("products") procured from vendors.

A simple mapping will tell you - here’s a product (an SBOM) that has this vulnerability (a vulnerable component).

A vendor could give you additional context, though:

  • yes, it contains this vulnerability, but we are not using it in an exploitable fashion

  • yes, it contains this vulnerability, but we have otherwise contained it

  • yes, it contains this vulnerability, but we have patched it from product version xyz+

Similarly, in larger enterprises, development teams could provide that information for transparency and compliance reasons, such as

  • yes, we know package xyz is vulnerable but only if configured in a specific manner that we are not using.

VEX to give Context

CSAF (Common Security Advisory Framework) VEX files (Vulnerability Exploitability eXchange) provide context focusing on the exploitability of CVEs in a product context - effectively reducing the number of false positives.

Vendor Advisories (such as Red Hat Advisories "RHSA-2025:1234") use this format to provide additional context and fix status to users of their software.

Matching SBOMs & VEX

Understanding the SBOM and CSAF-VEX Relationship

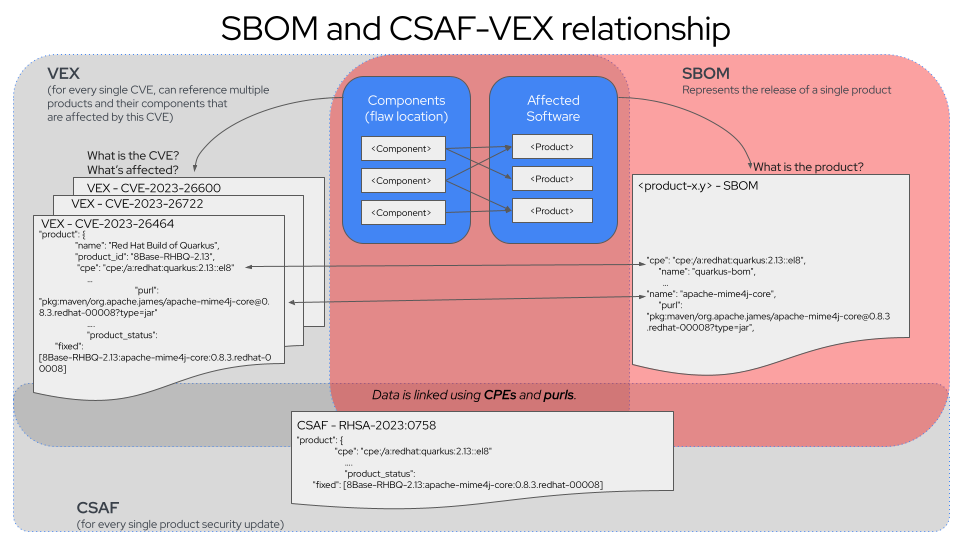

The diagram illustrates how SBOMs, VEX and CSAF-VEX are mapped and provide answers to

  • "What’s in this product?"

  • "What’s affected by this CVE?"

SBOM - "What’s in this product?"

An SBOM represents the release of a single product and lists all its components.

Here:

  • Product: "quarkus-bom"

  • Contains component: "apache-mime4j-core" version 0.8.3

The SBOM answers: "This release of our product contains these specific components and versions."

VEX - "What’s affected by this CVE?"

A VEX document is organized around one or more CVEs and identifies which products/components are affected by that specific vulnerability. It’s a vulnerability-centric view.

Example from diagram:

  • CVE-2023-26464 affects "Red Hat Build of Quarkus"

  • The vulnerable component is "apache-mime4j-core" (found in RHBQ 2.13)

  • Status: "fixed" in version 0.8.3

The VEX answers: "This CVE affects these specific products, and here’s the fix status."

The key insight: A single vulnerable component (like apache-mime4j-core) can appear in multiple products, and a single CVE can affect multiple products that all use that component.

How They Link Together: CPEs and PURLs

  1. SBOM lists components with identifiers:

    • CPE: cpe:/a/redhat:quarkus:2.13::el8

    • PURL: pkg:maven/org.apache.james/apache-mime4j-core@0.8.3:redhat-00008?type=jar

  2. VEX references the same identifiers:

    • Uses the same CPE/PURL to identify which component in which product

    • Adds vulnerability status information

  3. CSAF adds Vendor Advisory Context

    • CSAF-RHSA-2023:0758 is the security advisory document

    • References both the product (via CPE) and the component status

    • Shows the fixed version

CSAF files — representations of a single product release along with the CVEs that it fixes and the components that it ships — allow consumers to keep their SBOM up-to-date beyond its initial release.

SBOM files are static documents that contain a listing of components in a specific version of a product. For example, the RHEL 9.2 release has an accompanying SBOM that lists all components shipped by default in that release. Any security advisories released after RHEL 9.2 will update specific packages and provide information about component upgrades from those shipped in the 9.2 GA (generally available) version.

VEX files then provide a listing of affectedness of a CVE to each and every product release. For example, a VEX file of a hypothetical CVE-2099-1000 would contain information about whether or not RHEL 9.2 is affected by the vulnerability tracked by this CVE.

Example Chain

Let’s trace through the example in the diagram:

  1. A vendor releases a product:

    • Creates SBOM: "quarkus-bom contains apache-mime4j-core v0.8.3"

  2. A vulnerability is discovered:

    • CVE-2023-26464 is published affecting apache-mime4j-core in earlier versions

  3. VEX provides exploitability context:

    • "CVE-2023-26464 affects Red Hat Build of Quarkus"

    • "The vulnerable component is RBase-RHBo 2.13:apache-mime4j-core:0.8.3:redhat-0008"

    • "Status: FIXED in version 0.8.3"

  4. CSAF publishes product advisory and updates:

    • RHSA-2023:0758 describes the complete security update

    • References the product and fix details

Why This Matters

Without VEX: You might scan your SBOM and see apache-mime4j-core listed. A vulnerability scanner might flag CVE-2023-26464, causing alarm.

With VEX: The vendor can tell you: "Yes, we use that component, but this CVE is already fixed in our version" or "This CVE doesn’t affect how we use this component." This dramatically reduces false positives.

VEX Imports in TPA

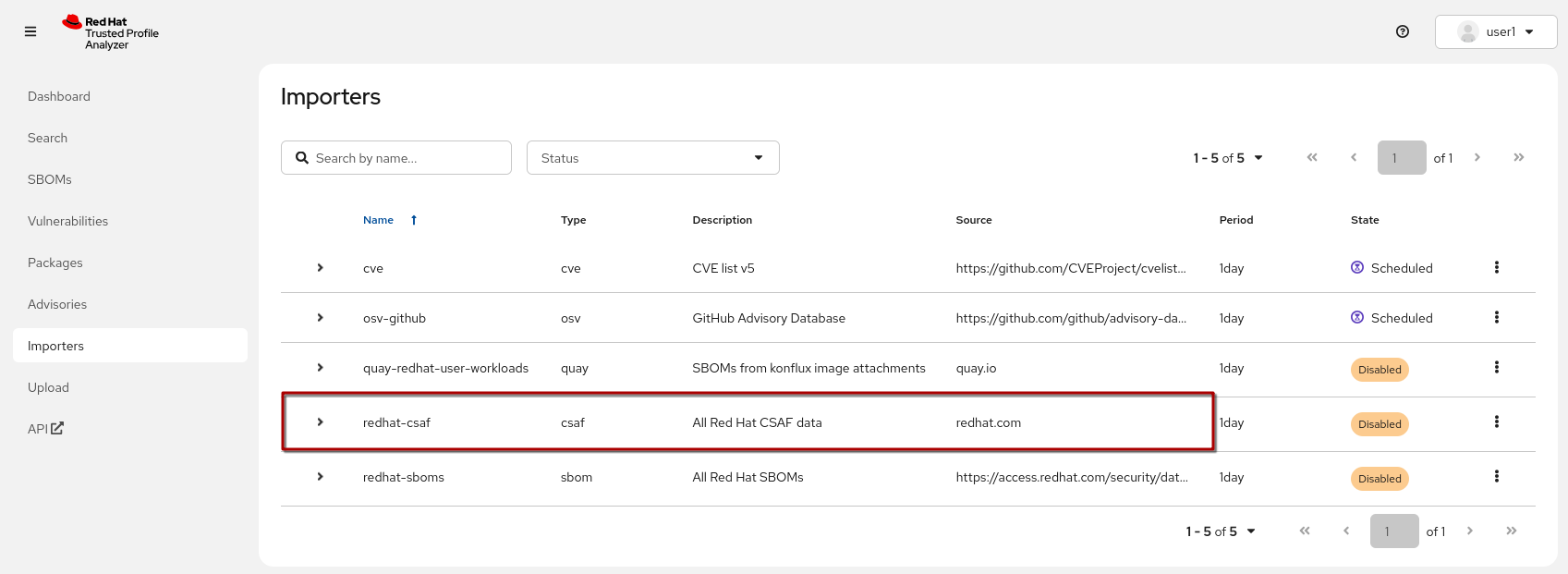

The default installation has a disabled importer for all Red Hat CSAF and VEX data. Customers that don’t make extensive use of Red Hat products most probably don’t have a requirement for that much data.

tpa importers csaf

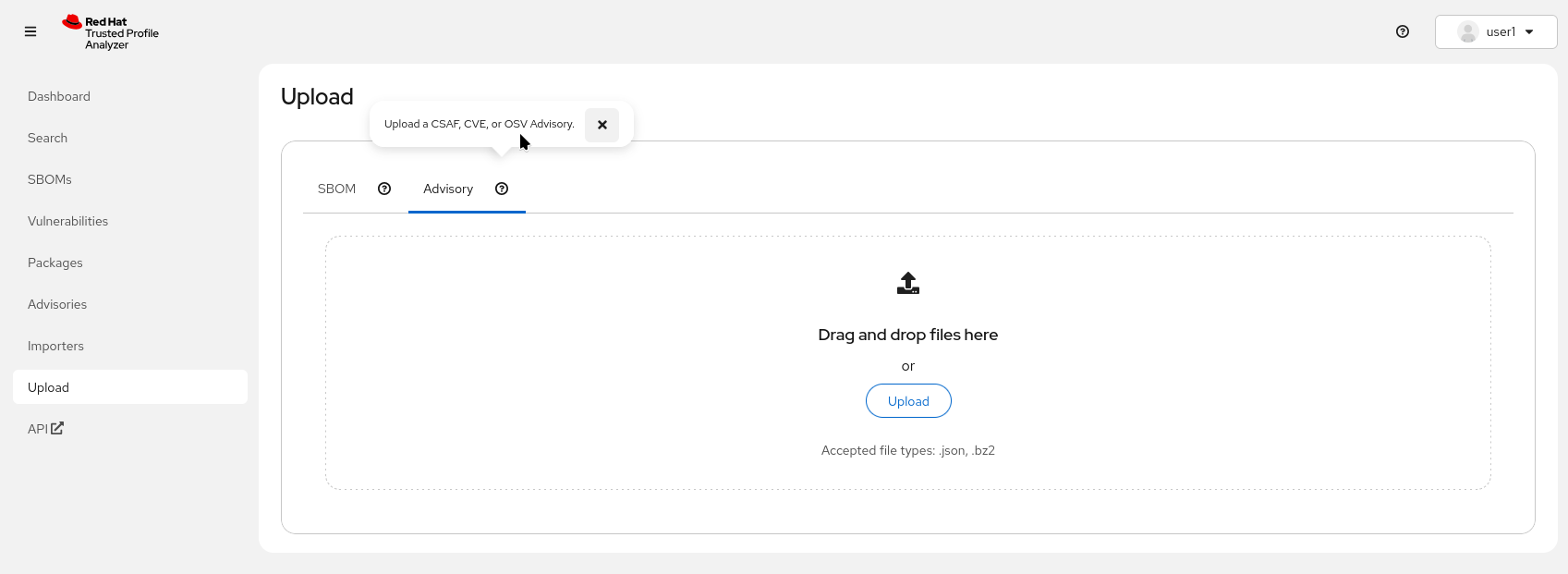

However, VEX files, CSAF VEX and OSV Advisories can be uploaded via the UI (or via the API):

tpa upload vex
